General Linear Model

General Linear Model module of the GAMLj suite for jamovi

3.0.0

The module estimates a general linear model with categorical and/or continuous variables, with options to facilitate estimation of interactions, simple slopes, simple effects, etc.

The module can estimate OLS linear models for any combination of categorical and continuous variables, thus providing an easy way for multiple regression, ANOVA, ANCOVA and moderation analysis.

Estimates

The module provides ANOVA tables and parameters estimates for any estimated model. Variance-based effect size indices (eta, partial eta, partial omega, partial epsilon, and beta) and mean comparisons (Cohen’s d) are optionally computed.

Variables definition follows jamovi standards, with categorical independent variables defined in Factors and continuous independent variables in Covariates.

Effect size indices are optionally computed by selecting the following options (see Details: GLM effect size indices):

  • \(\beta\) : standardized regression coefficients
  • \(\eta^2\): (semi-partial) eta-squared
  • \(\eta^2\)p : partial eta-squared
  • \(\omega^2\) : omega-squared
  • \(\omega^2\)p : partial omega-squared
  • \(\epsilon^2\) : epsilon-squared
  • \(\epsilon^2\)p : partial epsilon-squared

Confidence intervals of the parameters can be also selected in Options tab (see below).

Please check the details in Details: GLM effect size indices

The complete set of options for this panel is:

Effect Size The effect size to show in tables. They can be: "eta" for eta-squared, partial eta' for partial eta-squared, 'omega' for omega-squared, 'omega partial' for partial omega-squared, 'epsilon' for epsilon-squared, 'epsilon partial' for partial epsilon-squared and 'beta' for standardized coefficients (betas). Default is "beta" and "eta partial".
Estimates C.I. Non standardized coefficients (estimastes) CI in tables if flagged
β C.I. Standardized coefficients CI in tables if flagged
Confidence level a number between 50 and 99.9 (default: 95) specifying the confidence interval width for the plots.
Do not run If flagged, the results are not updated each time an option is changed. This allows settings complex model options without waiting for the results to update every time. Unflag it when ready to go.

Model

By default, the model terms are filled in automatically for main effects and for interactions with categorical variables.

Interactions between continuous variables or categorical and continuous variables can be set by clicking the second arrow icon.

Polinomial effects for continuous variables can be added to the model. When a variable is selected in the Components field, a little number appears on the right side of the selection. The number indicates the order of the effect.

By increasing that number before dragging the term into the Model Terms field, one can include any high order effect. Increasing the order number and combining the selection with other variables allows including interactions involving higher order effects of a variable.

The option Intercept includes an intercept in the model. Unflagging it estimates zero-intercept models (Regression through the origin, but see here before you do it ).

Models comparison

When Activate is flagged, models comparison options become visible.

Two models will be estimated and compared. The current model defined in Model Terms and the model defined in the Nested Model field. By default, the Nested Model terms are empty, so an intercept-only model is compared with the current. When the user defines nested terms, the comparison is updated.

Consider the following example:

The current model is composed by three main effects (x, z and w) and two interactions w*z and w*z. The nested model terms are only composed by the main effects (x, z and w). Thus, the loglikelihood ratio test that it is performed to compare the model will test the significance of the two interactions together. The output offers a Table in which each model fit indices and tests are presented, and the two models comparison test is presented.

The other options are:

Intercept TRUE (default) or FALSE, estimates fixed intercept. Not needed if formula is used.
Nested intercept TRUE (default) or FALSE, estimates fixed intercept. Not needed if formula is used.
Activate Activates models comparison
Test Omnibus test of the model is based on F-test (default) or loglikelihood ration test LRT.

Factors coding

It allows to code the categorical variables according to different coding schemas. The coding schema applies to all parameters estimates. The default coding schema is simple, which is centered to zero and compares each means with the reference category mean. The reference category is the first appearing in the variable levels.

Note that all contrasts but dummy guarantee to be centered to zero (intercept being the grand mean), so when involved in interactions the other variables coefficients can be interpret as (main) average effects. If contrast dummy is set, the intercept and the effects of other variables in interactions are estimated for the first group of the categorical IV.

Contrasts definitions are provided in the estimates table. More detailed definitions of the comparisons operated by the contrasts can be obtained by selecting Show contrast definition table.

Differently to standard R naming system, contrasts variables are always named with the name of the factor and progressive numbers from 1 to K-1, where K is the number of levels of the factor.

In reading the contrast labels, one should interpret the (1,2,3) code as meaning “the mean of the levels 1,2, and 3 pooled toghether”. If factor levels 1,2 and 3 are all levels of the factor in the samples, (1,2,3) is equivalent to “the mean of the sample”. For example, for a three levels factor, a contrast labeled 1-(1,2,3) means that the contrast is comparing the mean of level 1 against the mean of the sample. For the same factor, a contrast labeled 1-(2,3) indicates a comparison between level 1 mean and the subsequent levels means pooled together.

More details and examples Rosetta store: contrasts.

Covariates Scaling

Continuous variables can be Centered, standardized (z-scores), log-transformed (Log) or used as they are (none). The default is centered because it makes our lives much easier when there are interactions in the model, and do not affect the B coefficients when there are none. Thus, if one is comparing results with other software that does not center the continuous variables, without interactions in the model one would find only a discrepancy in the intercept, because in GAMLj the intercept represents the expected value of the dependent variable for the average value of the independent variable. If one needs to unscale the variable, simply select none.

Covariates conditioning rules how the model is conditioned to different values of the continuous independent variables in the simple effects estimation and in the plots when there is an interaction in the model.

  • Mean+SD: means that the IV is conditioned to the \(mean\), to \(mean+k \cdot sd\), and to \(mean-k\cdot sd\), where \(k\) is ruled by the white field below the option. Default is 1 SD.

  • Percentile 50 +offset: means that the IV is conditioned to the \(median\), the \(median+k P\), and the \(median-k\cdot P\), where \(P\) is the offset of percentile one needs. Again, the \(P\) is ruled by the white field below the option. Default is 25%. The default conditions the model to:

    • \(50^{th}-25^{th}=25^{th}\) percentile

    • \(50^{th}\) percentile

    • \(50^{th}+25^{th}=75^{th}\) percentile

The offset should be within 5 and 50.

Note that with either of these two options, one can estimate simple effects and plots for any value of the continuous IV.

Covariates labeling decides which label should be associated with the estimates and plots of simple effects as follows:

  • Labels produces strings of the form \(Mean \pm SD\).

  • Values uses the actual values of the variables, after scaling.

  • Labels+Values produces labels of the form \(Mean \pm SD=XXXX\), where XXXX is the actual value.

  • Unscaled Values produces labels indicating the actual value (of the mean and sd) of the original variable scale. This can be useful, for instance, when the user needs the estimates to be obtained with centered variables (because there are interactions, for instance), but the plot of the effects is preferred in the original scales of the moderators.

  • Unscaled Values + Labels as the previous option, but add also the label “Mean” and “SD” to the orginal values.

The Scaling on option decides how the scaling of the variables handle missing values: First, keep in mind that the model will be estimated on complete cases, no matter how this option is set. When there are missing values, however, one can scale each variable only on the complete cases (the default), or scale columnwise. If columnwise is selected, the mean and standard deviation of each variable used to scale the scores are computed with the available data of the variable, independently of possible missing values in other variables.

The option Dependent variable scale allows to transform the dependent variable. The dependent variable can be centered, standardized (z-scores), log-transformed (Log) or used as it is (none). The default is none, so no transformation is applied.

Post-hocs

Post-hoc tests can be accomplished for the categorical variables groups by selecting the appropriated factor and flag the required tests

Post-hoc tests are implemented based on R package emmeans. All tecnical info can be found here

Along with the means comparisons, one can obtain also the Cohen’s \(d\) effect size indices. Different formulation of the Cohen’s \(d\) are available, and they differ in the way the pooled standard error is computed.

  • Cohen’s d (model SD) \(d_{mod}\): the means difference is divided by the estimated standard deviation computed based on the model residual variance.

  • Cohen’s d (sample SD) \(d_{sample}\): the means difference is divided by the pooled standard deviation computed within each group.

  • Hedge’s g \(g_{sample}\): the means difference is divided by the pooled standard deviation computed within each group, corrected for sample bias. The correction is the one describe by Hedges and Olkin (2014) based on the Gamma function.

Plots

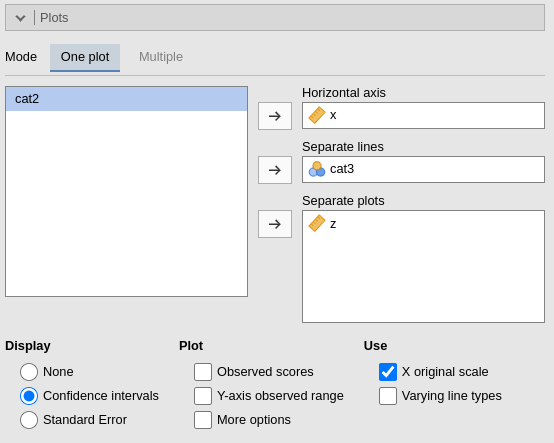

The “plots” menu allows for plotting main effects and interactions for any combination of types of variables, making it easy to plot interaction means plots, simple slopes, and combinations of them. The best plot is chosen automatically.

By filling in Horizontal axis one obtains the group means of the selected factor or the regression line for the selected covariate.

By filling in Horizontal axis and Separated lines one obtains a different plot depending on the type of variables selected:

  • Horizontal axis and Separated lines are both factors, one obtains the interaction plot of group means.
  • Horizontal axis is a factor and Separated lines is a covariate. One obtains the plot of group means of the factor estimated at three different levels of the covariate. The levels are decided by the Covariates conditioning options above.
  • Horizontal axis and Separated lines are covariates. One obtains the simple slopes graph of the simple slopes of the variable in horizontal axis estimated at three different levels of the covariate.

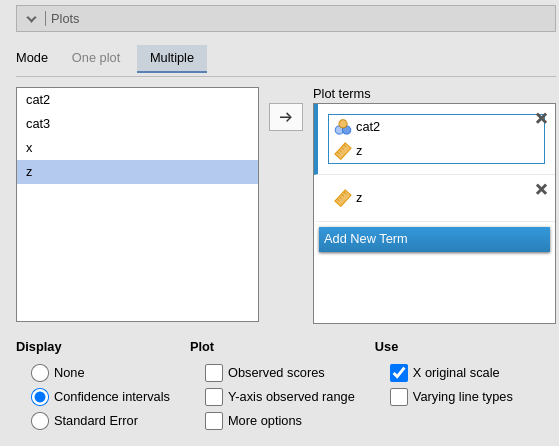

By filling in Separate plots one can probe higher-order interactions. If the selected variable is a factor, one obtains a two-way graph (as previously defined) for each level of the “Separate plots” variable. If the selected variable is a covariate, one obtains a two-way graph (as previously defined) for the Separate plots variable centered to conditioning values selected in the Covariates conditioning options. Any number of plots can be obtained depending on the order of the interaction.

The remaining options are defined as follows:

Display 'None' (default), Confidence Intervals, or Standard Error. Display on plots no error bars, use confidence intervals, or use standard errors on the plots, respectively.
Observed scores TRUE or FALSE (default), plot raw data along the predicted values
Y-axis observed range TRUE or FALSE (default), set the Y-axis range equal to the range of the observed values.
X original scale If selected, the X-axis variable is scaled with the orginal scale of the variable, independently to the scaling set is the Covariates Scaling.
Varying line types If selected, a black and white theme is set for the plot, with multiple lines (if present) drawn in different styles.
Johnson-Neyman plot

Simple Effects

Simple effects can be computed for any combination of types of variables, making it easy to probe interactions, simple slopes, and combinations of them. Simple effects can estimated up to any order of interaction. If only one moderator is set in the Moderators field, the effect of the variable in the Simple effects variable is computed at different levels of the moderator. If more than one moderator is defined, the effects are estimated for all combinations of the moderator levels.

Simple effects are computed following the same logic of the plots. They correspond to the plotted effects as defined above. As for plots, the effects are estimated for different levels of the categorical moderators and for the conditioning values of the continuous moderators defined in Covariates Scaling panel.

When there is more than one moderator, one can activate Simple interactions to obtain estimation and tests for lower order interactions at different levels of a moderator. Simple interactions are computed using the last variable appearing in the Moderators field as moderator. In the case depicted in the figure above, the interaction w*x is estimated and tested at different levels of z.

Estimated marginal means

Print the estimate expected means, SE, df and confidence intervals of the predicted dependent variable by factors in the model. Any combination available in the model (main effects, interactions, non-linear terms), can be requested. If the term involves categorical independent variables, means of each level of the variable are presented. If the term involves continuous variables, expected means computed at the levels defined in Covariate Scaling are presented.

Assumptions checks

Homogeneity tests Provides Levene’s test for equal variances across groups defined by factors (homoschedasticity).
Normality of residuals Provides Kolmogorov-Smirnov and Shapiro-Wilk tests for normality of residuals.
Collinearity tests Computes VIF and tollerance for the model term of the model
Q-Q plot of residuals Outputs a Q-Q plot (observed residual quantiles on expected residual quantiles). More general info here
Residuals Histogram Outputs the histogram of the distribution of the residuals, with an overlaying ideal normal distribution with mean and variance equal to the residuals distribution parameters.
Residuals-Predicted plot Produces a scatterplot with the residuals on the Y-axis and the predicted in the X-axis. It can be usufull to assess heteroschdasticity.
Identify extremes Indentify 1% and 99% extreme values in the plots by marking them with their rown number in the dataset

Options

CI Method The method to estimate the confidence intervals. Standard method (Wald) or bootstrap methods. For bootstrap, Quantile computes the confidence intervals based on the bootstrap distribution, whereas BCAi computes the bootstrap bias corrected accelerated intervals.
Bootstrap rep. The number bootstrap repetitions.
SE Method The method to estimate the standard errors. Standard for Wald’s method or Robust for robust method.
Method HC1 to HC3 sets the heteroschedasticity-consistent robust standard error. See sandwich R package for deatils.
On intercept If selected provides ìnformation about the intercept (F test, effect size indexes)
On Effect sizes If selected, provides ìnformation about the effect size indexes
Coefficients Covariances TRUE or FALSE (default), shows coefficients covariances
Predicted Saves in the dataset the predicted values of the model
Residuals Saves in the dataset the residual values of the model
Remove notes Removes all notes and warnings from the Tables. Useful to produce pubblication quality tables.

Examples

Some worked out practical examples can be found here

Details

Some more information about the module specs can be found here

Comments?

Got comments, issues or spotted a bug? Please open an issue on GAMLj at github or send me an email

References

Hedges, Larry V, and Ingram Olkin. 2014. Statistical Methods for Meta-Analysis. Academic press.
