GAMLj version ≥ 3.0.0

Generalized Mixed Linear Models module of the GAMLj suite for jamovi

The module estimates generalized mixed linear models with categorial and/or continuous variables, with options to facilitate estimation of interactions, simple slopes, simple effects, post-hoc, etc. In this page you can find some hint to get started with the mixed models module.

Module

The module can estimate generalized linear mixed models for any combination of categorical and continuous variables, thus providing an easy way of obtaining multilevel or hierarchical linear models for any combination of independent variables types and a plethora of dependent variable types.

The module can estimate several mixed linear models:

  • Poisson model
  • Negative Binomial
  • Logistic model
  • Probit model
  • Oridinal proportional odds
  • Multinomial

For each model, any combination of categorical and continuous variables can be set as independent variables, thus providing an easy way for multiple regression, ANOVA-like, ANCOVA-like and moderation analysis for categorical and count dependent variables.

Estimates

The module provides parameter estimates of the fixed effects, the random variances and correlation among random coefficients.

Variables definition follows jamovi standards, with categorical independent variables defined in “fixed factors” and continuous independent variables in “covariates”.

The grouping variable is simply set by putting the corresponding variable(s) into cluster. In this version, multiple clustering variables are possible, but not combinations of classifications. That can be easily solved by recoding the clustering variables ( see Technical Details ).

Confidence intervals for the parameters estimates and for the exponential of them (expB).

The actual estimation occurs when the dependent variable, the clustering variable and at least one random coefficient (random effect) has been selected.

Do not run Do not update the results when options are changed in the GUI. Unselect to run the analysis.
Activate Activate the model comparison fields and options.
Effect Size Effect size indices. Odd Rations (default) exponentiates the coefficients. For dichotomous dependent variables Relative Risk indices can be obtained. Marginal Effects computes the marginal effects (if the model allows).
Coefficients TRUE (default) or FALSE , parameters CI in table
For exp(B) TRUE (default) or FALSE , exp(B) CI in table
Random Variances C.I. TRUE or FALSE (default), random effects CI in table. It could be very slow.
Confidence level a number between 50 and 99.9 (default: 95) specifying the confidence interval width for the plots.

Fixed effects Model

By default, the model fixed effects terms are filled in automatically for main effects and for interactions with categorical variables.

Interactions between continuous variables or categorical and continuous can be set by clicking the second arrow icon.

Polinomial effects for continuous variables can be added to the model. When a variable is selected in the Components field, a little number appears on the right side of the selection. The number indicates the order of the effect.

By increasing that number before dragging the term into the Model Terms field, one can include any high order effect. Increasing the order number and combining the selection with other variables allows including interactions involving higher order effects of a variable.

Random effects

Random effects across clustering variables are automatically prepared by the module following R lmer() standards: term | cluster indicates that the coefficient associated with term is random across cluster.

By default the module assumes correlated random effects. All the effects varying across the same cluster variable appearing in the Random coefficients will be correlated. To obtain a variance component model, select Not correlated. A custom pattern of correlation can be obtained by selecting Correlated by block. For instance, in Fig. below, a custom structure has been defined by allowing the intercept and the effect of x to be correlated, whereas the effect of wfac is independent from the others.

Other options are:

Model terms List in the random coefficients supplier the terms included as fixed effects
Add Listing of random coefficients in the supplier: none do not add any term, otherwise add the selected terms.
Effects correlation Random effects are assumed to be correlated (Correlated) or independent (Not correlated). If Correlated by block is selected, additional fields are shown to create blocks of coefficients correlated within block and independent between blocks.
LRT for Random Effects Compute LRT for the random effects

Models comparison

When Model Comparison Activate is flagged, model comparison options become visible. Both for fixed effects

and for random effects.

Two models will be estimated and compared. The current model defined in by the Model Terms and the Random Coefficients is compared with the the model defined in the Nested Model and Nested Model Random Coefficients. By default, the Nested Model terms are empty and the Nested Model Random Coefficients are filled with the full model random terms, so a model without fixed effects is compared with the current. When the user defines nested terms, the comparison is updated.

Consider the following example:

The current model is composed by three main effects (x, z) and the random coefficients for (Intercept) and x. The nested model terms are have the same fixed effects, but it has only the random intercept. Thus, the loglikelihood ratio test that it is performed to compare the models will test the significance of the random effect of x. The output offers a Table in which each model fit indices and tests are presented, and the two models comparison test is presented.

Factors coding

It allows to code the categorical variables according to different coding schemas. The coding schema applies to all parameters estimates. The default coding schema is simple, which is centered to zero and compares each means with the reference category mean. The reference category is the first appearing in the variable levels.

Note that all contrasts but dummy guarantee to be centered to zero (intercept being the grand mean), so when involved in interactions the other variables coefficients can be interpret as (main) average effects. If contrast dummy is set, the intercept and the effects of other variables in interactions are estimated for the first group of the categorical IV.

Contrasts definitions are provided in the estimates table. More detailed definitions of the comparisons operated by the contrasts can be obtained by selecting Show contrast definition table.

Differently to standard R naming system, contrasts variables are always named with the name of the factor and progressive numbers from 1 to K-1, where K is the number of levels of the factor.

In reading the contrast labels, one should interpret the (1,2,3) code as meaning “the mean of the levels 1,2, and 3 pooled toghether”. If factor levels 1,2 and 3 are all levels of the factor in the samples, (1,2,3) is equivalent to “the mean of the sample”. For example, for a three levels factor, a contrast labeled 1-(1,2,3) means that the contrast is comparing the mean of level 1 against the mean of the sample. For the same factor, a contrast labeled 1-(2,3) indicates a comparison between level 1 mean and the subsequent levels means pooled together.

More details and examples Rosetta store: contrasts.

Covariates Scaling

Continuous variables can be centered, standardized, cluster-based centered, cluster-based standardized, log-transformed or used as they are (none). The default is centered because it makes our lives much easier when there are interactions in the model, and do not affect the B coefficients when there are none. Thus, if one is comparing results with other software that does not center the continuous variables, without interactions in the model one would find only a discrepancy in the intercept, because in GAMLj the intercept represents the expected value of the dependent variable for the average value of the independent variable. If one needs to unscale the variable, simple select none.

Centered clusterwise and z-scores clusterwise center each score using the mean of the cluster in which the score belongs. For z-scores clusterwise the score is also divided by the cluster standard deviation. Log applies a simple natural logarithm transformation to the variable.

Covariates conditioning rules how the model is conditioned to different values of the continuous independent variables in the simple effects estimation and in the plots when there is an interaction in the model.

  • Mean+SD: means that the IV is conditioned to the \(mean\), to \(mean+k \cdot sd\), and to \(mean-k\cdot sd\), where \(k\) is ruled by the white field below the option. Default is 1 SD.

  • Percentile 50 +offset: means that the IV is conditioned to the \(median\), the \(median+k P\), and the \(median-k\cdot P\), where \(P\) is the offset of percentile one needs. Again, the \(P\) is ruled by the white field below the option. Default is 25%. The default conditions the model to:

    • \(50^{th}-25^{th}=25^{th}\) percentile

    • \(50^{th}\) percentile

    • \(50^{th}+25^{th}=75^{th}\) percentile

The offset should be within 5 and 50.

Note that with either of these two options, one can estimate simple effects and plots for any value of the continuous IV.

Covariates labeling decides which label should be associated with the estimates and plots of simple effects as follows:

  • Labels produces strings of the form \(Mean \pm SD\).

  • Values uses the actual values of the variables, after scaling.

  • Labels+Values produces labels of the form \(Mean \pm SD=XXXX\), where XXXX is the actual value.

  • Unscaled Values produces labels indicating the actual value (of the mean and sd) of the original variable scale. This can be useful, for instance, when the user needs the estimates to be obtained with centered variables (because there are interactions, for instance), but the plot of the effects is preferred in the original scales of the moderators.

  • Unscaled Values + Labels as the previous option, but add also the label “Mean” and “SD” to the orginal values.

The Scaling on option decides how the scaling of the variables handle missing values: First, keep in mind that the model will be estimated on complete cases, no matter how this option is set. When there are missing values, however, one can scale each variable only on the complete cases (the default), or scale columnwise. If columnwise is selected, the mean and standard deviation of each variable used to scale the scores are computed with the available data of the variable, independently of possible missing values in other variables.

Post-hocs

Post-hoc tests can be accomplished for the categorical variables groups by selecting the appropriated factor and flag the required tests

Post-hoc tests are implemented based on R package emmeans. All tecnical info can be found here

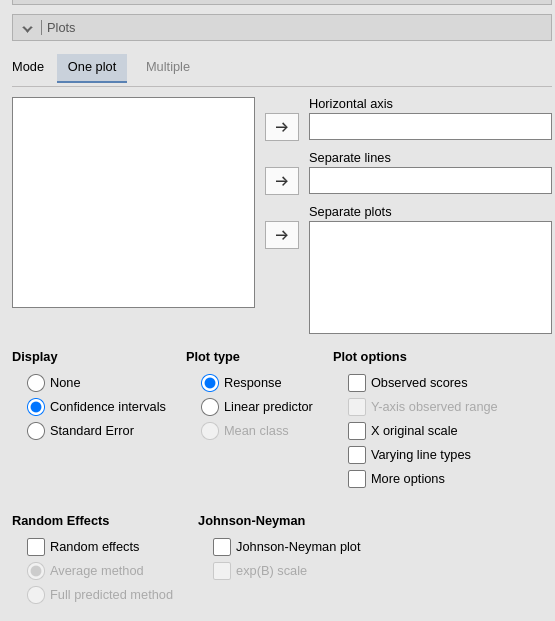

Plots

The “plots” menu allows for plotting main effects and interactions for any combination of types of variables, making it easy to plot interaction means plots, simple slopes, and combinations of them. The best plot is chosen automatically.

By filling in Horizontal axis one obtains the group means of the selected factor or the regression line for the selected covariate.

By filling in Horizontal axis and Separated lines one obtains a different plot depending on the type of variables selected:

  • Horizontal axis and Separated lines are both factors, one obtains the interaction plot of group means.
  • Horizontal axis is a factor and Separated lines is a covariate. One obtains the plot of group means of the factor estimated at three different levels of the covariate. The levels are decided by the Covariates conditioning options above.
  • Horizontal axis and Separated lines are covariates. One obtains the simple slopes graph of the simple slopes of the variable in horizontal axis estimated at three different levels of the covariate.

By filling in Separate plots one can probe higher-order interactions. If the selected variable is a factor, one obtains a two-way graph (as previously defined) for each level of the “Separate plots” variable. If the selected variable is a covariate, one obtains a two-way graph (as previously defined) for the Separate plots variable centered to conditioning values selected in the Covariates conditioning options. Any number of plots can be obtained depending on the order of the interaction.

By flagging Random effects one obtains the random effects estimated values in the plot along with the fixed effects. In case of multiple cluster variables, the first cluster variable in the cluster field of “variable role” panel is used (if it is included in the model). To change the cluster variable used to plot the random effects, change the order of the variables in the “variable role” definition.

Error Bar Definition 'none' (default), 'ci', or 'se'. Use no error bars, use confidence intervals, or use standard errors on the plots, respectively.
Y-axis scale Plot ordinal model predicted values in as probabilities (response) or predicted class (mean.class)
Observed scores TRUE or FALSE (default), plot raw data along the predicted values
Y-axis observed range TRUE or FALSE (default), set the Y-axis range equal to the range of the observed values.
Original scale TRUE or FALSE (default), use original scale for covariates.
Varying line types TRUE or FALSE (default), use different linetypes per levels.
Random effects TRUE or FALSE (default), add predicted values based on random effect in plot

Estimated marginal means

Print the estimate expected means, SE, df and confidence intervals of the predicted dependent variable by factors in the model. Any combination available in the model (main effects, interactions, non-linear terms), can be requested. If the term involves categorical independent variables, means of each level of the variable are presented. If the term involves continuous variables, expected means computed at the levels defined in Covariate Scaling are presented.

Options

The precision/speed parameter applies to mixed models with one random effect. Higher numbers increase precision in the estimation with a speed cost. It corresponds to the nAGQ parameter of glmer command in R package lme4.

The CI method decides which method is used for computing confidence intervals. Wald uses Wald statistics and it is less precise than the other methods, but it is significantly faster. Profile is more precise but slower. Boot, bootstrap method, is the slowest. Details of the implementation can be found in lme4 manual

CI Method The method used to compute the confidence intervals. Standard uses the Wald method to compute standard errors and confidence intervals. Profile computes Profile Likelihood Based Confidence Interval, in which the bounds are chosen based on the percentiles of the chi-square distribution around the maximum likelihood estimate. Bootstrap performs parametric bootstrap, with Bootstrap rep repetitions.
Bootstrap rep. a number for bootstrap repetitions.
Predicted Saves the predicted values in the dataset
Residuals Saves the residuals values in the dataset
Remove notes Remove all footnotes from the tables

Examples

Some worked out examples of the analyses carried out with jamovi GAMLj Mixed models are posted here (more to come)

Details

Some more information about the module specs can be found here

Comparison with other software
